Custom Condenser Kit, Size 13.50” (Height) 20” (Width)

$449.00

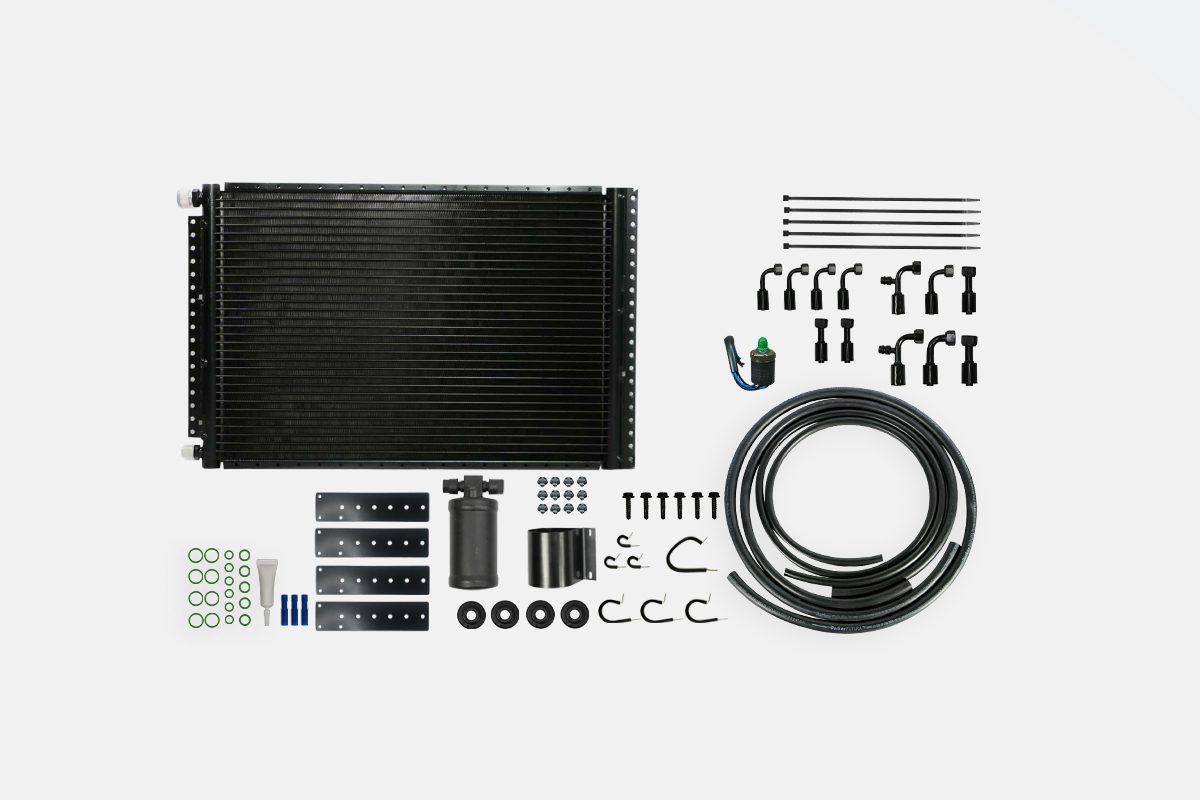

This kit comes with a 13.50” (Height) 20” (Width) A/C Condenser powder coated black and made from 100% aluminum.  It also comes with all barrier refrigerant hoses, fittings needed along with a large capacity receiver/drier, mounting clamp, trinary pressure switch.

SKU: RM-15-1119 Categories: , Tags: , ,
    Description

    INCLUDED IN THE KIT

    CONDENSER:

    This new black powder coated all-aluminum parallel flow design condenser is specifically for R134a refrigerant. Restomod Air Heat Killer automotive A/C condenser allows up to 40% more heat reduction capacity along with a dramatic difference in refrigerant flow and pressure drop compared to the obsolete standard tube and fin condenser. This condenser provides superior heat exchange.

    SIZE: 13.50” (Height) 20” (Width) 1” (Thickness)

    HOSE KIT:

    Custom hose kit includes barrier hoses for use with R134a refrigerant. All Restomod Air Fittings are black coated with O-ring connections with crimp ferrules. Kits for the R134a include fittings with a charge port. Includes 8 ft. of #6 (Liquid) refrigerant hose, 4 ft. of #8 (Discharge) refrigerant hose, and 5 ft. of #10 (Suction) refrigerant hose, along with #6, #8, #10 hose mounting clamps, tie wraps, O-ring set, airtight and flexible firewall grommets and fitting lube. Large Capacity Receiver/Drier supplied 6” x 2.5” with switch port for the safety switch.

    Comes with a wide circle clamp supplied to mount your receiver/drier. Also supplied pressure switch, line fitting, and wire harness. Our hi-low pressure switch kit is highly recommended in all A/C systems. Cuts out at 28 lbs. when the system runs low on refrigerant. When the system over-pressures, it cuts out at 380 lbs. to prevent compressor and hose damage.

    • 8 FT. #6 (Liquid) refrigerant hose  (condenser to drier to evaporator)
    • 8 FT. of 5/8 Heater Hose
    • 4 FT. #8 (Discharge) refrigerant hose (compressor to condenser)
    • 5 FT. #10 (Suction) refrigerant hose (compressor to evaporator)
    • #6, #8, #10 hose mounting clamps
    • tie wraps
    • (4) flexible firewall grommets
    • Mineral Oil (O’ring fitting lube)
    • Large Capacity Receiver/Drier (6” X 2.5”)
    • Trinary Safety Pressure Switch
    • (4) Universal Condenser Mounting Brackets
    • O’Ring Bag kit
    • Electrical connectors
    • Condenser/ Drier mounting hardware
    • (2) #6 Liquid Hose Straight Fittings (black)
    • (4) #6 Liquid Hose 90 degree Fittings (black)
    • (2) 5/8 Heater Hose Crimp Straight Fittings (black)
    • (1) #8 Discharge Hose Straight Fitting (black)
    • (1) #8 Discharge Hose 90 degree Fitting (black)
    • (1) #8 Discharge Hose 90 degree w/ R134a Charge Port Fitting (black)
    • (1) #10 Suction Hose Straight Fitting (black)
    • (1) #10 Suction Hose 90 degree Fitting (black)
    • (1) #10 Suction Hose 90 degree w/ R134a Charge Port Fitting (black)
