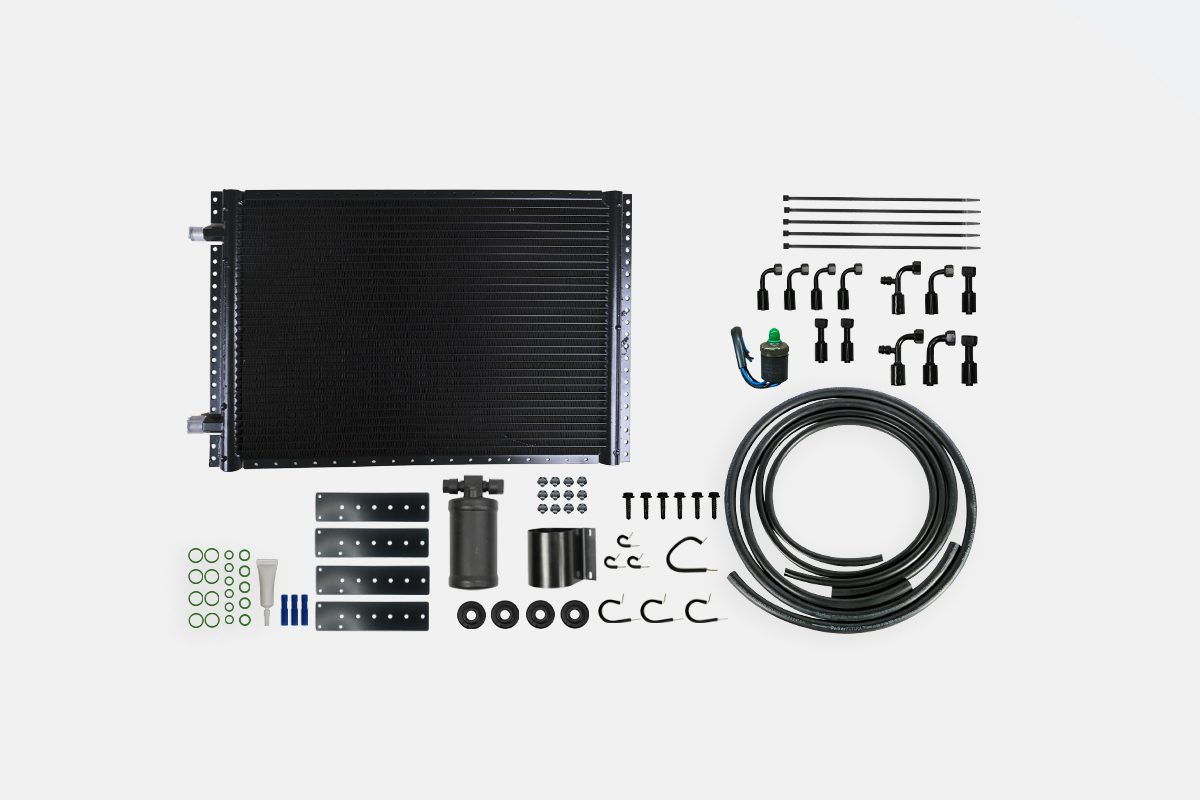

INCLUDED IN THE KIT
CONDENSER:
This new black powder coated all-aluminum parallel flow design condenser is specifically for R134a refrigerant. Restomod Air Heat Killer automotive A/C condenser allows up to 40% more heat reduction capacity along with a dramatic difference in refrigerant flow and pressure drop compared to the obsolete standard tube and fin condenser. This condenser provides superior heat exchange.
SIZE: 14” (Height) 21.75” (Width) 1” (Thickness)
HOSE KIT:
Custom hose kit includes barrier hoses for use with R134a refrigerant. All Restomod Air Fittings are black coated with O-ring connections with crimp ferrules. Kits for the R134a include fittings with a charge port. Includes 8 ft. of #6 (Liquid) refrigerant hose, 4 ft. of #8 (Discharge) refrigerant hose, and 5 ft. of #10 (Suction) refrigerant hose, along with #6, #8, #10 hose mounting clamps, tie wraps, O-ring set, airtight and flexible firewall grommets and fitting lube. Large Capacity Receiver/Drier supplied 6” x 2.5” with switch port for the safety switch.
Comes with a wide circle clamp supplied to mount your receiver/drier. Also supplied pressure switch, line fitting, and wire harness. Our hi-low pressure switch kit is highly recommended in all A/C systems. Cuts out at 28 lbs. when the system runs low on refrigerant. When the system over-pressures, it cuts out at 380 lbs. to prevent compressor and hose damage.
- 8 FT. #6 (Liquid) refrigerant hose  (condenser to drier to evaporator)
- 8 FT. of 5/8 Heater Hose
- 4 FT. #8 (Discharge) refrigerant hose (compressor to condenser)
- 5 FT. #10 (Suction) refrigerant hose (compressor to evaporator)
- #6, #8, #10 hose mounting clamps
- tie wraps
- (4) flexible firewall grommets
- Mineral Oil (O’ring fitting lube)
- Large Capacity Receiver/Drier (6” X 2.5”)
- Trinary Safety Pressure Switch
- (4) Universal Condenser Mounting Brackets
- O’Ring Bag kit
- Electrical connectors
- Condenser/ Drier mounting hardware
- (2) #6 Liquid Hose Straight Fittings (black)
- (4) #6 Liquid Hose 90 degree Fittings (black)
- (2) 5/8 Heater Hose Crimp Straight Fittings (black)
- (1) #8 Discharge Hose Straight Fitting (black)
- (1) #8 Discharge Hose 90 degree Fitting (black)
- (1) #8 Discharge Hose 90 degree w/ R134a Charge Port Fitting (black)
- (1) #10 Suction Hose Straight Fitting (black)
- (1) #10 Suction Hose 90 degree Fitting (black)
- (1) #10 Suction Hose 90 degree w/ R134a Charge Port Fitting (black)
