Compressor Mounting Bracket 26-287
LS (1997-2013 Corvette Engine) (Top Mount) (Passenger Side)

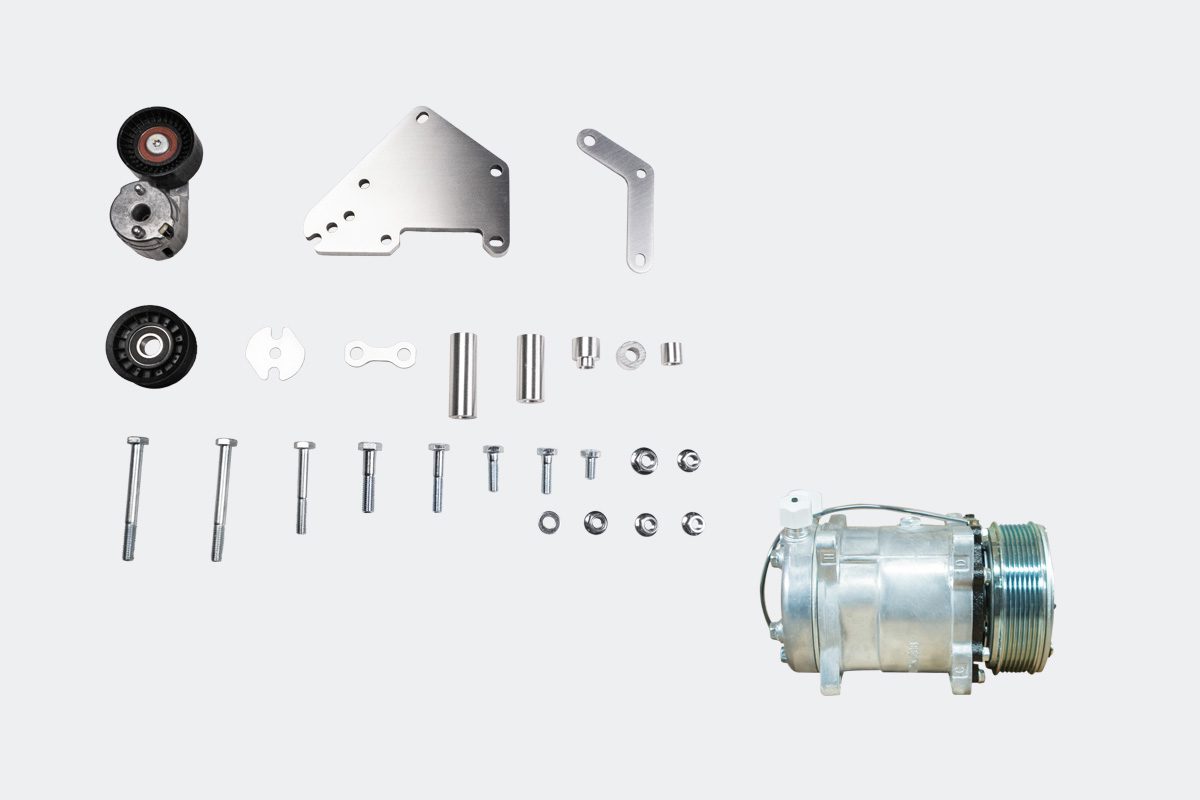

This compressor mounting bracket is engineered with a simple design to mount your Sanden compressor with ease. Restomod Air mounting brackets are rigid in design and specific to your engine type and include all mounting hardware needed.
Wide-Mount AC relocation bracket for LS engines with Corvette (1997-2013) crank pulley and water pump spacing.
This bracket mounts the popular Sanden SD508 compressor just outside the passenger’s side valve cover and is driven by one main 6-rib serpentine belt.
This configuration is popular in classic muscle cars because it maintains low hood clearance without being as wide as some of our competitors. The overall width is just 16.26” from the center of the engine to the outer edge of the compressor.
If you have specific questions about this compressor mounting bracket, contact our sales department for further information.
The Sanden Multi-Groove (Serpentine) R134a Air Conditioning compressor is used for a wide variety of applications and is available in Cast or Polished finishes.
All Classic Auto Air compressors are TRUE Sanden compressors not Sanden “like”. We don’t use knock-offs for our rides so why should you? That’s why we use the best in the world when it comes to ac compressors. Every vehicle air compressor we have comes prefilled with oil pre-oiled for easy installation. Like all of our products our compressors are all new never rebuilt and resold to you.
One of our knowledgeable sales people can assist you in choosing the perfect air conditioner compressor for your classic car, muscle car or pro-touring build… just ask us.
COMPRESSOR SPECS:
- Lightweight, compact design
- 6,000 RPM continuous duty rating
- Low horsepower requirement
- Clean and attractive underhood appearance
- 8.5″ Depth x 5.75″ Diameter
- Designed for 5/8″ and fan belts
- R134a refrigerant
