LIMITED DASH SPACE?
NO PROBLEM.
Achieve a professional appearance more efficiently with a head start on your fabrication. Time is money. We know that and so do you.

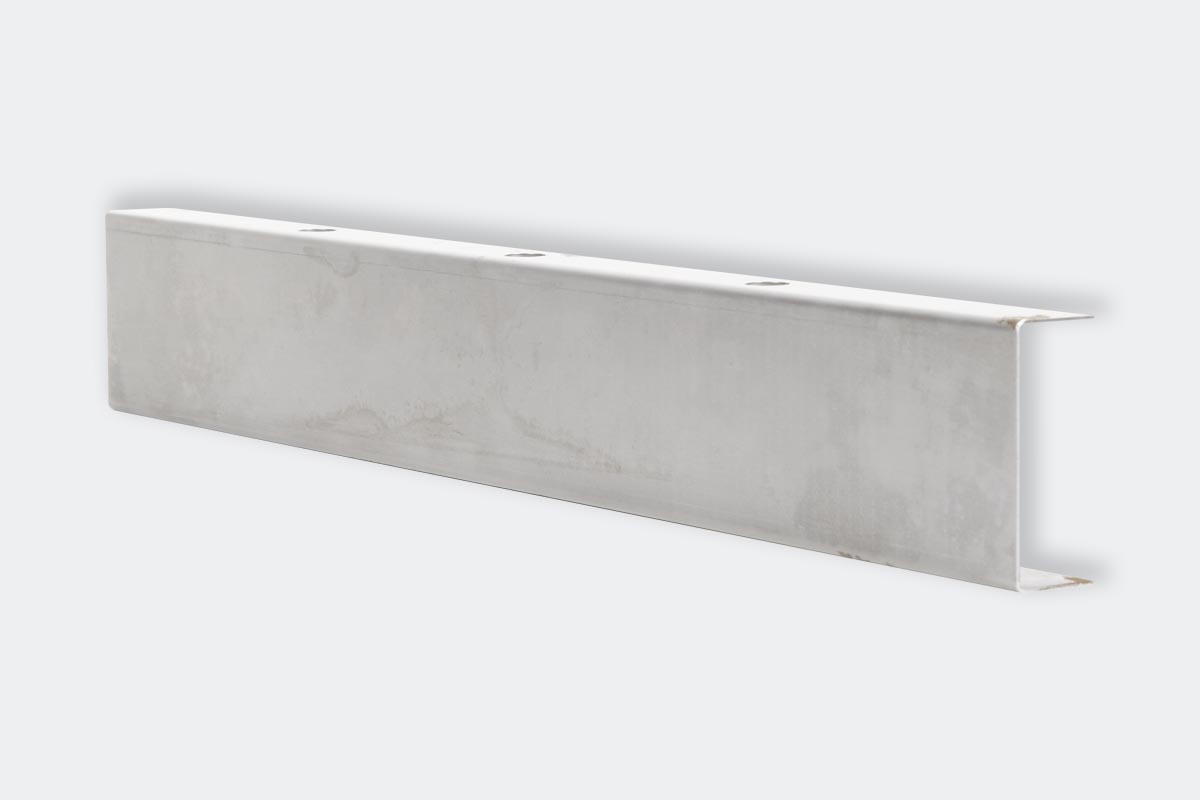

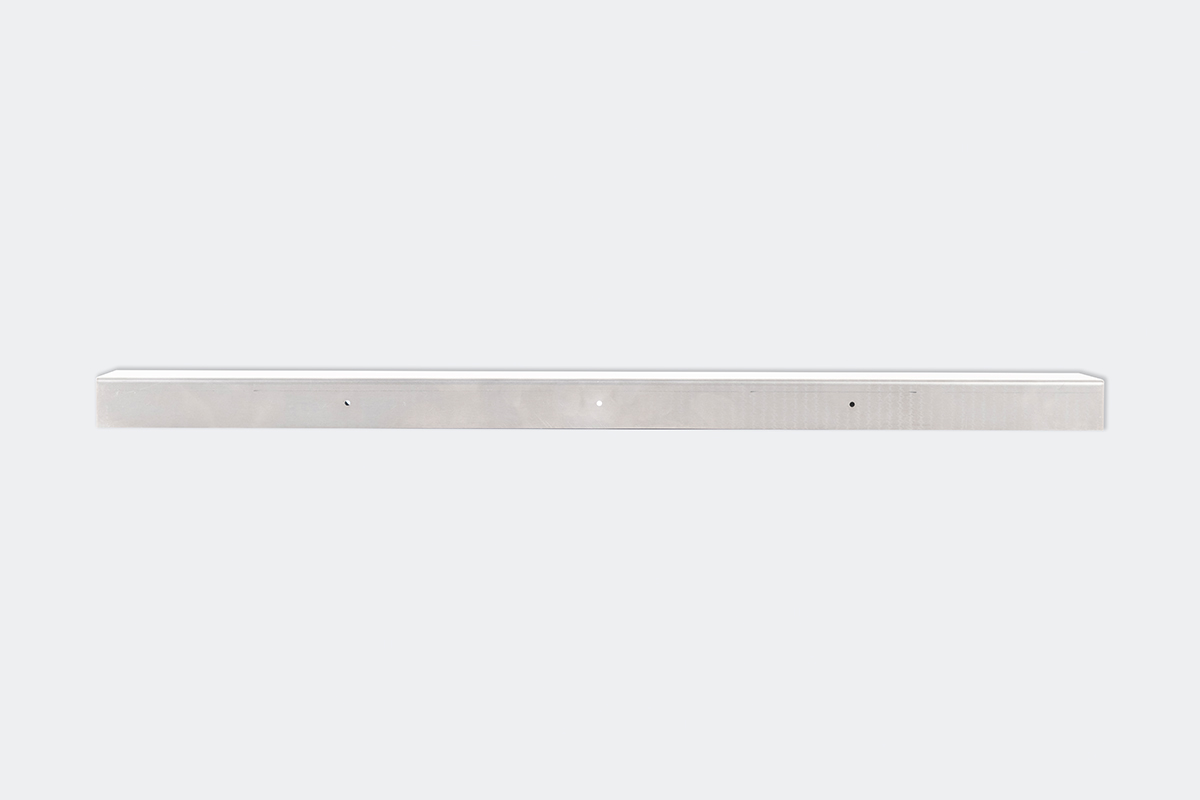

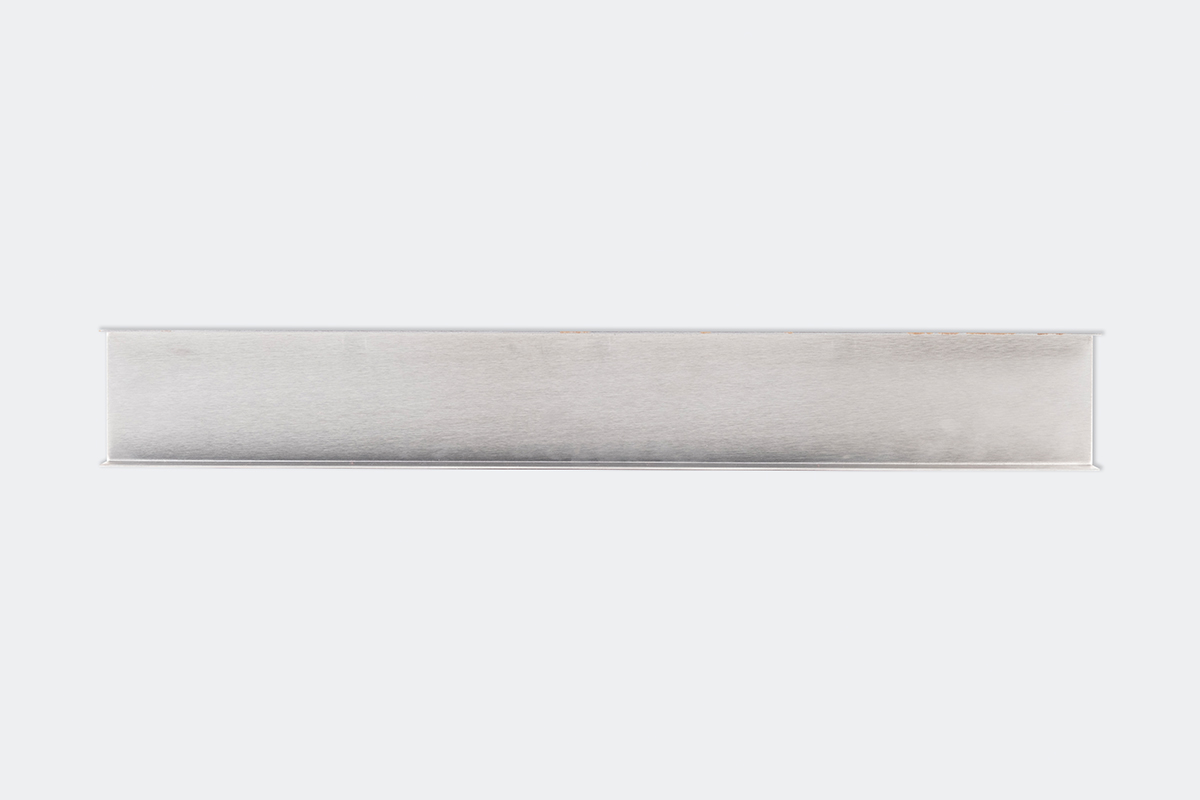

Our pre-bent raw steel under-dash panel gives you a head start on the interior. ready to be painted or wrapped in leather – Just cut to fit, paint, or wrap in leather. Mount our controls and vents without modification to your dash. This provides an excellent and straightforward solution for limited dash space when using Restomod Air products.

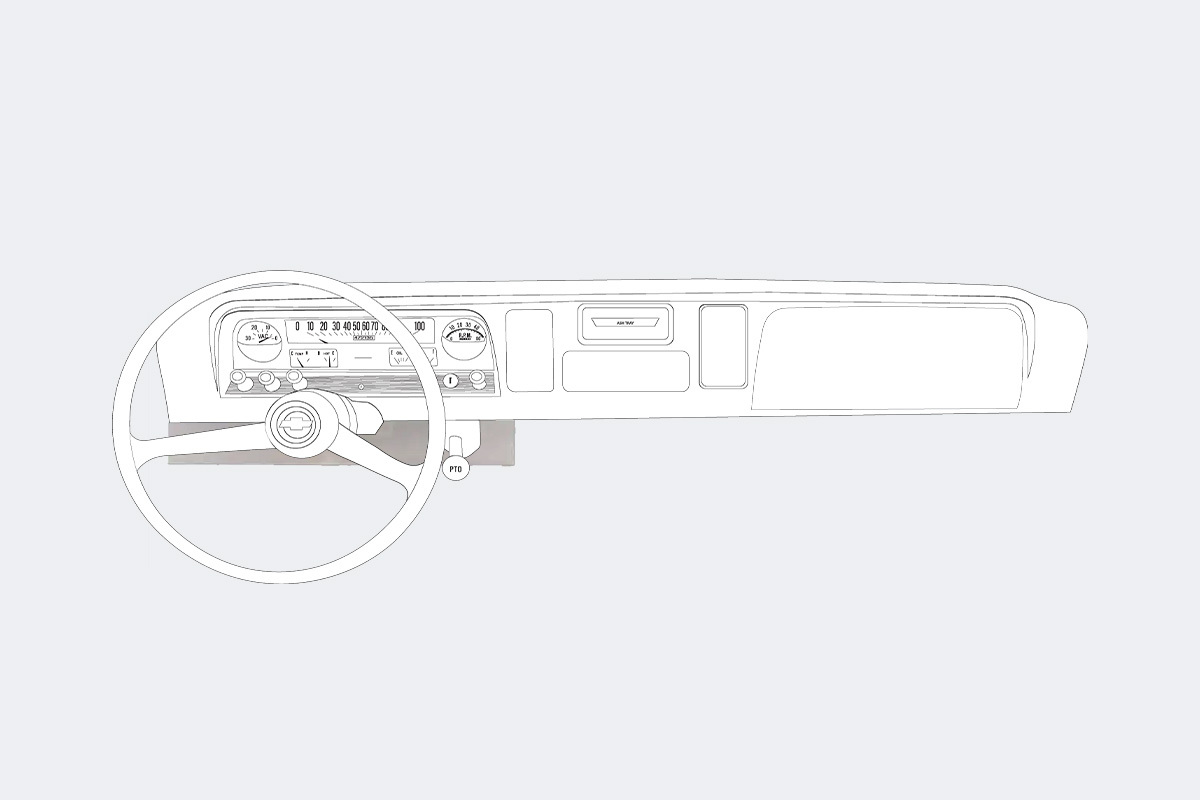

This pre-bent panel was specifically designed with Restomod Air products in mind. The mounting process is straightforward: determine the desired length, angle, and curvature you want for your dash, then affix it to the bottom section. We’ve already created pilot holes and access holes, making it simple and convenient for you to mount. Select the vents or controls of your preference to mount onto the panel.
DIMENSIONS
Length: 24.0”
Height: 3.299”
Depth: 1.2”

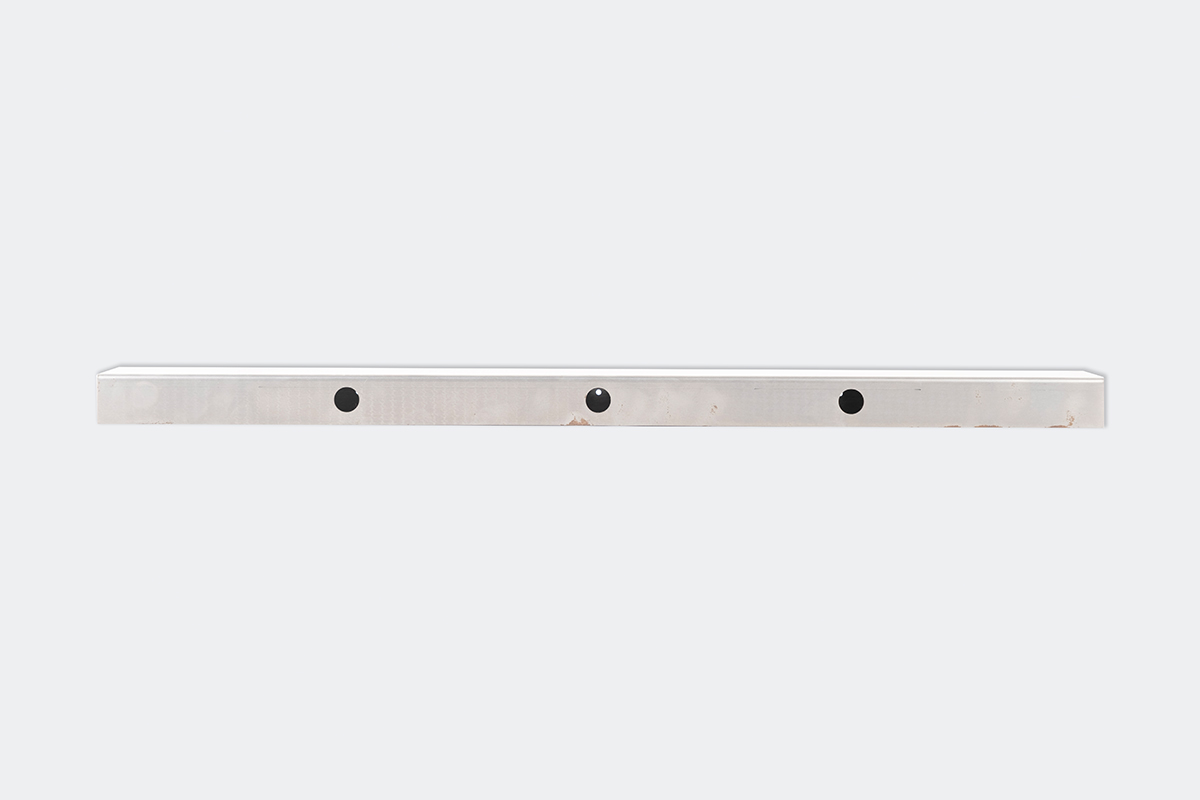

Pilot Holes: 0.125 ” (3 holes)
Access Holes: 0.6 ” (3 holes)
MATERIALS
Pre-Bent Raw Steel
PACKAGE INCLUDES
24” Steel Underdash Panel that can be cut to the desired length to save you time and money!
Does not work with Full-Size Diablo a/c vents.
